Blum - Movento Drawer Slides

Name: Blum - Movento Drawer Slides
Rating: 3.89 (9 reviews)

Premium undermount slides with ultra-smooth motion and full adjustability - engineered for precision, performance, and high-end cabinetry.

Mounting Style: Undermount
Extension Type: Full Extension
Closing Mechanism: Soft Close
Load Capacity: 88 lbs

$62.95

Option: 400mm (16")

350mm (14") 400mm (16") 450mm (18") 500mm (20") 550mm (22")

Available in stock

BUY MORE, SAVE MORE

Buy 6+ → 10% off
Buy 24+ → 15% off

Description
Technical Data
Options

Description

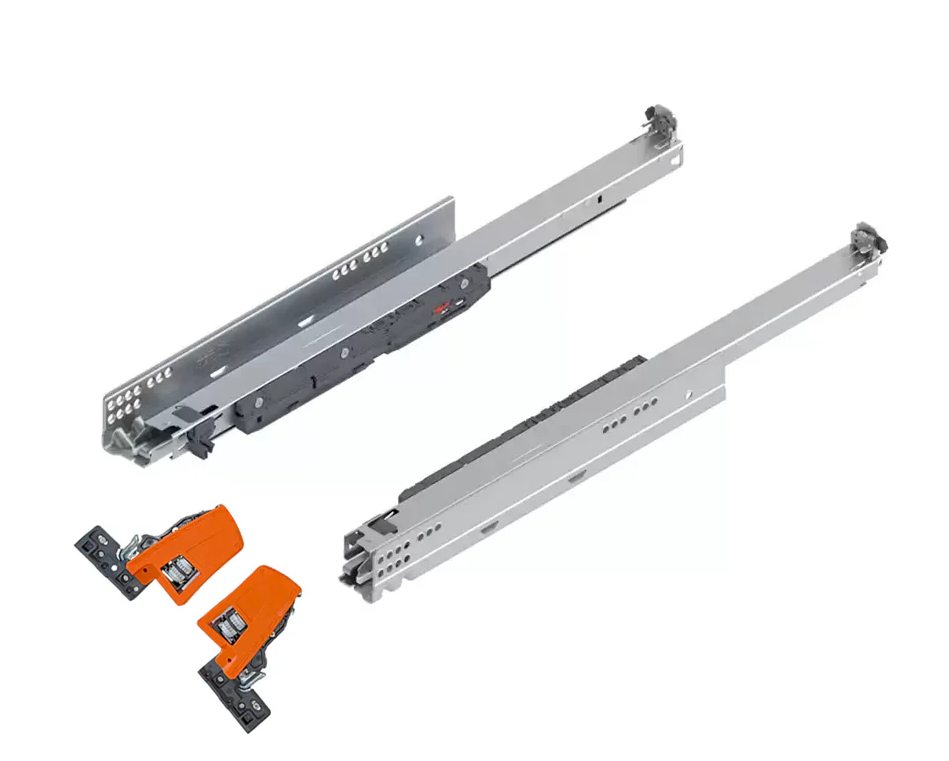

Full Extension Soft-Close Undermount Blumotion Slides 760H

760H Series

BLUM MOVENTO 760 series is a 40kg class option with soft close and full extension. This slide offers tool-free tilt adjustment, height adjustment, and side-to-side adjustment for easy alignment!

Includes Left and Right Standard Locking Device with Side Adjustment.

Full extension concealed runners with BLUMOTION soft close
Zinc-coated steel
Concealed roller carriage with permanently lubricated synthetic rollers
Designed for maximum 12mm & 15mm (1/2" & 5/8") drawer material thickness

European screws can be found here

Technical Data

Mounting Style: Undermount
Product Finish: Zinc
Extension: Full Extension
Closing Type: Soft Close
Load Rating: 40kg
Application: Frame or Frameless
Max. Drawer Box Thickness: 16mm
Material: Steel
Weight: 3kg (6.6lb)

Options

350mm (14") Slides

760H3500S - Drawer Slides
T51.7601R - Right Locking Device
T51.7601L - Left Locking Device

400mm (16") Slides

760H4000S - Drawer Slides
T51.7601R - Right Locking Device
T51.7601L - Left Locking Device

450mm (18") Slides

760H4500S - Drawer Slides
T51.7601R - Right Locking Device
T51.7601L - Left Locking Device

500mm (20") Slides

760H5000S - Drawer Slides
T51.7601R - Right Locking Device
T51.7601L - Left Locking Device

550mm (22") Slides

760H5500S - Drawer Slides
T51.7601R - Right Locking Device
T51.7601L - Left Locking Device

Accessories

Euro Screw - Quadrex 6.3mm x 11.5mm Flat Head (50 pack)

$4.25

~~$4.25~~

Shop

Blum - Tip-On Set for Movento

$44.95

Shop

Blum - Tandem/Movento Drilling Template

$65.95

~~$65.95~~

Shop

Blum Tool Set for Tandem and Movento Drilling Template

Blum - Tool Set for Tandem / Movento Drilling Template

$34.95

~~$34.95~~

Shop

Blum - Universal Drilling Template

$124.95

~~$124.95~~

Shop

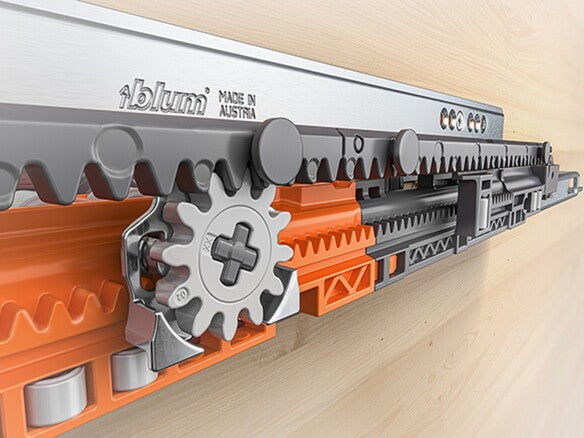

Synchronised feather-light glide for more peace and quiet

The synchronised feather-light glide is a special feature of the MOVENTO
runner system. The runner components run smoothly and silently – for
soft and effortless opening and closing. Low-friction cylindrical nylon
rollers ensure an optimal weight distribution.

Innovative technology for greater quality of motion

You will appreciate the enhanced ease of use of MOVENTO; when the drawer is opened, the runner profile immediately transitions to the feather-light glide. And thanks to the BLUMOTION soft-close mechanism, it closes again just as softly and effortlessly – even when heavy pull-outs receive a forceful push.

High stability for greater load bearing capacity

MOVENTO boasts excellent stability and a high load bearing capacity. Thanks to its superb sag values, the runner system is ideal for applications near to the floor, too. This makes the full extension with 40 kg and 70 kg load bearing classes the first choice for all living areas, even when you are using wide, high and deep pull-outs.

4 dimensions for greater precision

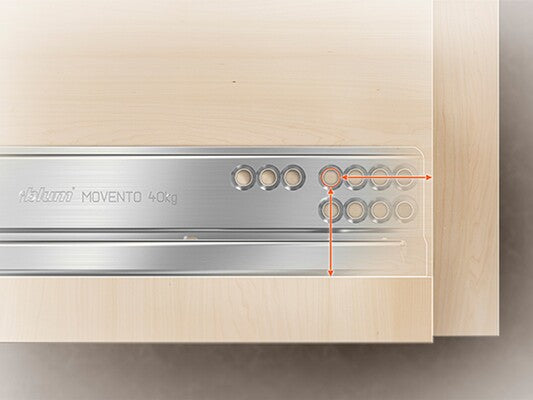

With MOVENTO, you can adjust the height, tilt, and depth. Side to side can also be adjusted. There is no need to alter the drawer and you get a precise gap layout quickly, easily and without tools.

Frequently Asked Questions about Blum Movento Drawer Slides

What is Blum Movento?

Blum Movento is a high-quality, full-extension, soft-close drawer slide system. It offers smooth and silent operation while providing excellent stability and easy installation. The slides are designed for use with wooden drawers and are known for their durability, precision, and ease of use.

How does the soft-close feature work on Blum Movento slides?

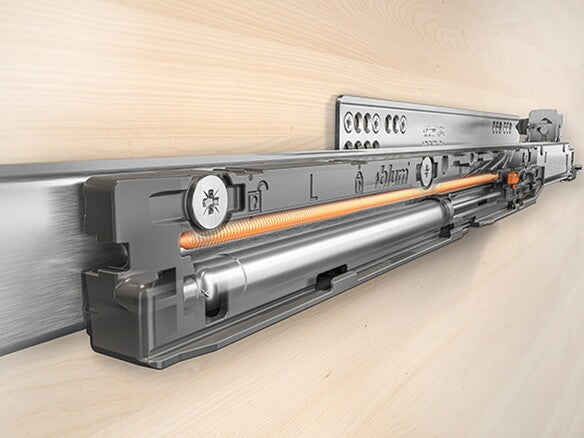

The soft-close feature in Blum Movento slides is powered by a hydraulic damping system built into the slides. This system automatically slows down the drawer as it closes, ensuring a smooth and quiet closing motion. It also helps prevent slamming and protects both the drawer and the cabinet.

What weight capacity do Blum Movento slides support?

Blum Movento drawer slides typically support a weight capacity of up to 40 kg (88 lbs) per pair, depending on the specific model and installation type. This makes them suitable for a wide range of residential and commercial applications.

Can Blum Movento slides be adjusted after installation?

Yes, Blum Movento slides offer post-installation adjustments for both height, tilt, and side alignment. This allows you to fine-tune the position of the drawer to ensure it fits perfectly within the cabinet, even after the slides have been installed.

Are Blum Movento slides compatible with any drawer design?

Blum Movento slides are designed to work with wooden drawers, but they require precise installation to ensure smooth operation. The system is compatible with standard drawer constructions, as long as the dimensions and installation guidelines are followed. It is important to choose the correct size and configuration to match the specific needs of your drawer system.

5 stars: 4 (44%)
4 stars: 3 (33%)
3 stars: 0 (0%)
2 stars: 1 (11%)
1 star: 1 (11%)

This product has no reviews of its own. The merchant grouped it with related products, so the reviews shown are from across that group.

Good service, wrong item

I loved the customer service and attention. Unfortunately the slides turned out to be wrong even though we worked hard together to get the correct ones. I just found out yesterday and emailed so I expect someone will follow up Mon or Tues and we can figure it out. I am confident we will find a solution.

Blum undermount slides

Quick delivery, great selection, great communication.

Will order again from KJP

Great slides, description errors

Bought five pairs of these slides for a dresser I was building. The slides themselves are very good and KJP has them for a good price. Unfortunately, the description has several errors:
- They do not have elongated holes for depth adjustment
- They do not have a rear side-to-side adjustment (there is a tilt adjustment in the rear, not side-to-side)
- They do not have four-dimensional adjustments (you can adjust each side up and down, so two dimensions)

Blum makes many different models of slides with slight variations, so I'm guessing the description may have been taken from a different model. The slides themselves are good as long as you're aware of the limitations.

Only Blum for me

Don’t know what else to say. They are worth every penny. Once you get used to the install measurements, life is easy. Love them.

900000000

I need a money 4000000 belllon and invest

Blum tandem plus blumotion full extension soft close drawer slides

They are the very best on the market. I have been using them on several projects and I am still impressed by the quality.

Missing items?

Unfortunately my drawer slides did not come with screws or instructions. Dissatisfied so far…

Hi Michael,
Sorry to hear you thought there was missing items on your order. The slides do not come with screws and we do not advertise they are included. If you are looking for instructions - we've always included a downloadable PDF right on the product page.
Thanks for your feedback!

Blum slides

Outstanding product!

Blum instructions

Just a reminder that the Blum Canadian slides are different than those sold in the US. Unfortunately the Canadian instructions are sub par compared to the US instructions. I found this out the hard way. So don’t use 563H but 560H instructions. 😊
