Blum - Aventos HK-S
Blum - Aventos HK-S
Blum - Aventos HK-S

Blum - Aventos HK-S

$93.95
$93.95
Colour: Light Gray
Power Factor: 220-500 PF (20K2B00.06)

Available in stock

Description

For small wall cabinets and fitted units

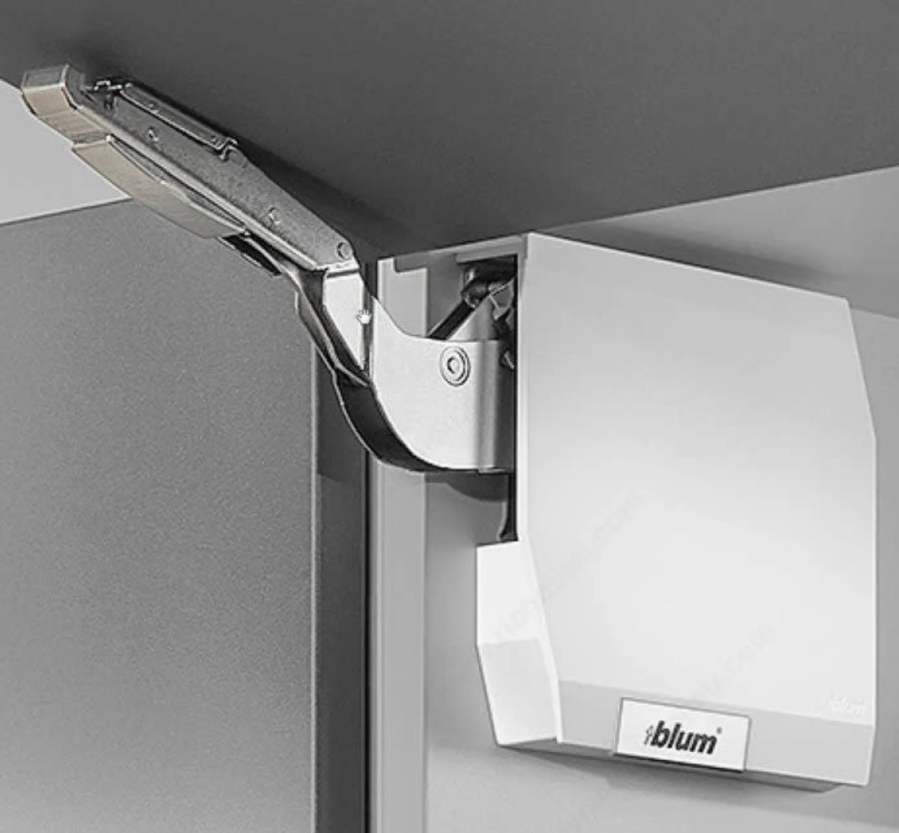

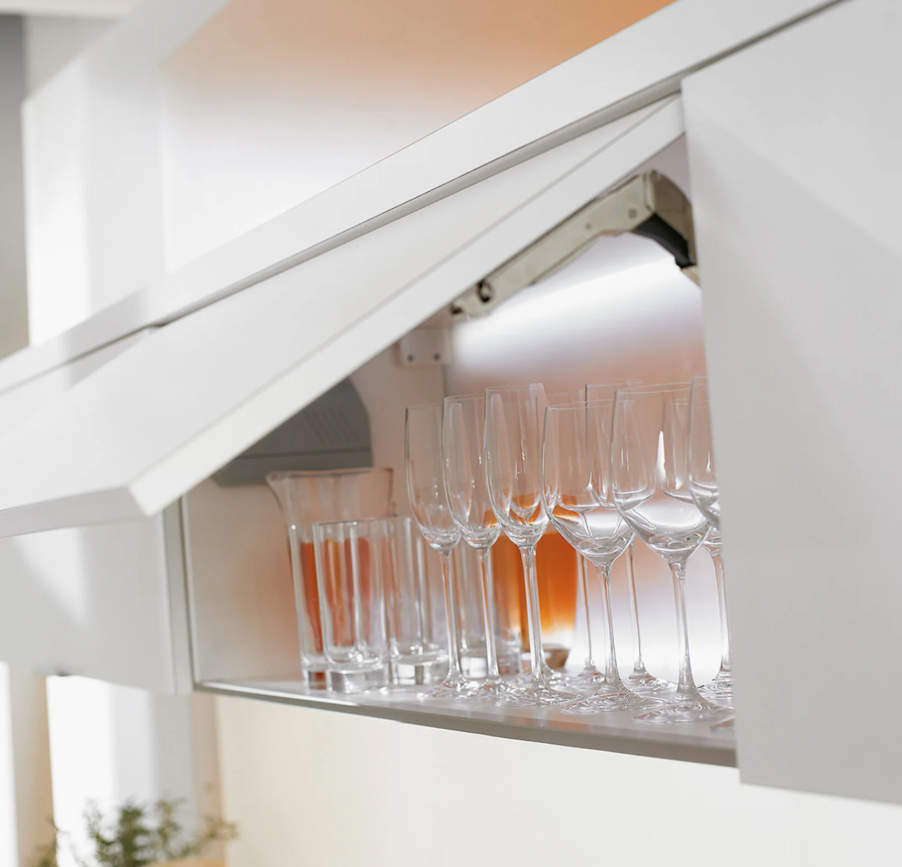

The AVENTOS HK-S stay lift allows you to make optimal use of the storage space available, e.g. above refrigerators or larder units. The compact lift mechanism fits snugly into small cabinets and excels in terms of assembly ease and user convenience.

  • Ideal for small applications in wall cabinets, tall units and over the refrigetaor
  • Simple, infinitely variable lift mechanism
  • Soft and effortless closing thanks to BLUMOTION
  • Light operating forces
  • Perfect motion with a variable stop

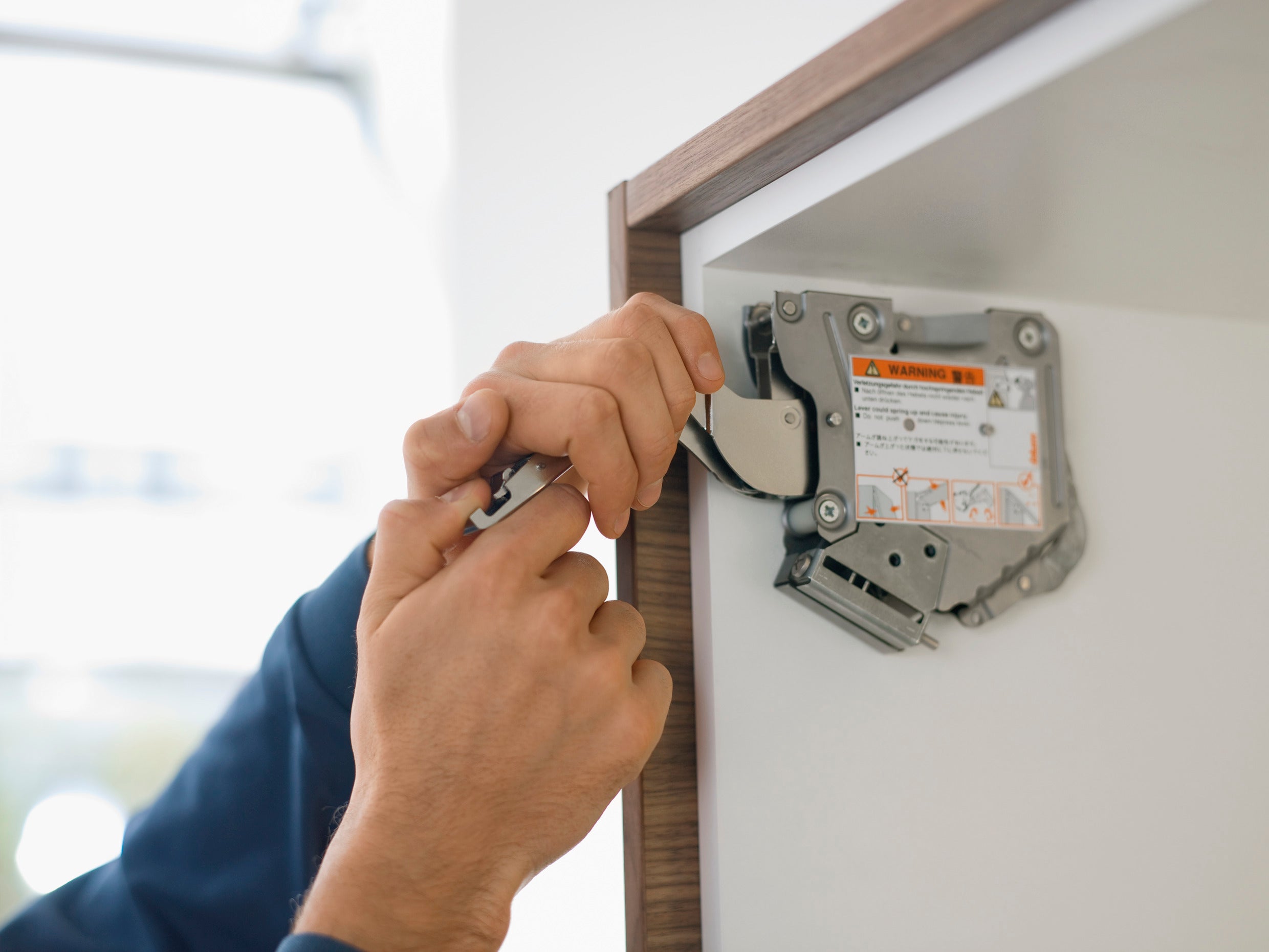

  • Tool-free assembly
  • 3-dimensional front adjustment
  • Simple, infinitely variable lift mechanism
  • No hinges are necessary
  • Cabinet height max.: 600mm
  • Opening angle: 107°
  • Screws included

**We recommend the more powerful lift mechanism for overlapping areas**

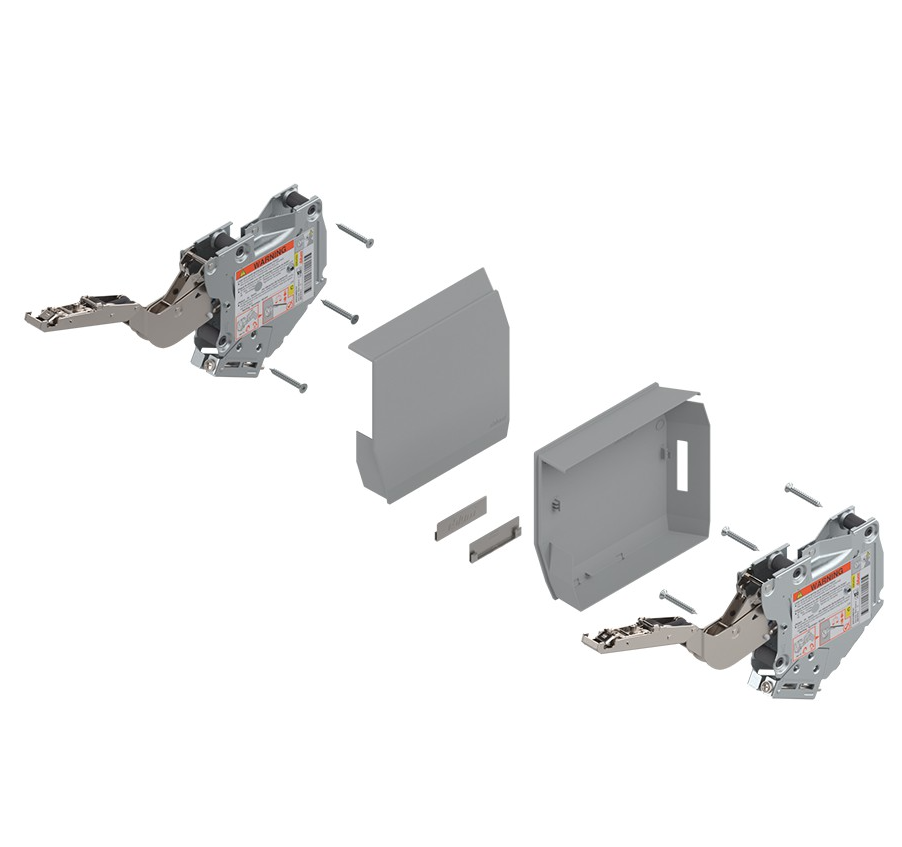

Includes
  • 2 x HK-S Lift Mechanism (Symmetrical)
  • 2 x Cover Cap (Light gray or white)
  • 6 x Chipboard screws (4mm x 35mm)
  • 2 x Inline mounting plate (175H3100) for front fixing
What is Power Factor LF?
  • Height of door (mm) x Weight of door (kg) = Power Factor LF
  • 220-500 Power Factor LF = 20K2B00.06
  • 400-1000 Power Factor LF = 20K2C00.06
  • 960-2215 Power Factor LF = 20K2E00.06
