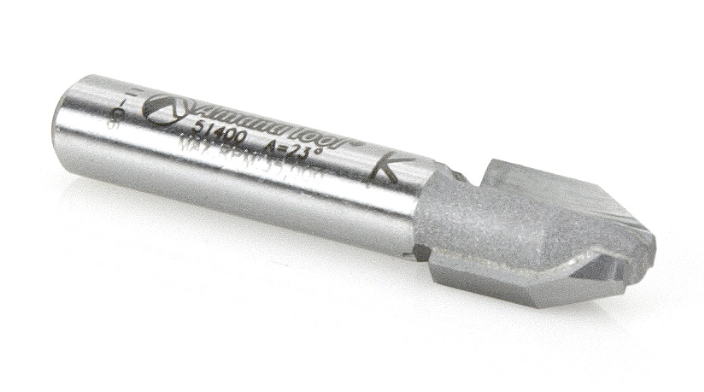

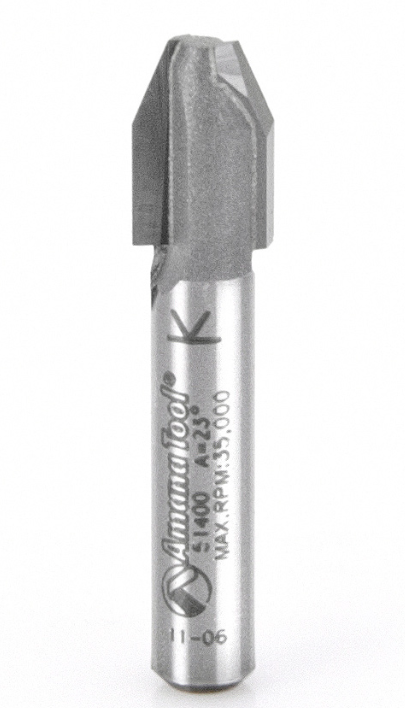

Amana - 51400 - 22.5° Combination Bevel/Flush Trim Laminate Trim
Amana - 51400 - 22.5° Combination Bevel/Flush Trim Laminate Trim
Amana - 51400 - 22.5° Combination Bevel/Flush Trim Laminate Trim

Amana - 51400 - 22.5° Combination Bevel/Flush Trim Laminate Trim

$32.95

Available in stock

Description

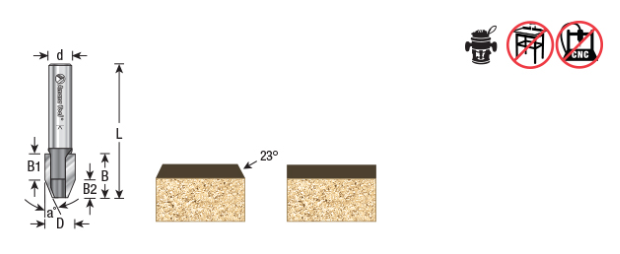

Carbide Tipped Combination Bevel/Flush Laminate Trim 22.5 Deg x 11/32 Dia x 1/2 x 1/4 Inch Shank

  • Angle (a°): 22.5°
  • Diameter (D): 11/32"
  • Cutting Length (B): 1/2"
  • B1: 7.5mm (19/64")
  • B2: 5.2mm (13/64")
  • Shank (d): 1/4"
  • Overall Length (L): 1-5/8"
  • Flutes: 2

Cut, trim, and bevel laminates with this one bit. Change depth-of-cut setting to shift from flush to bevel-trimming. Must be used with an edge or bearing guide or fence. Designed specifically for use in laminate trimmers.
