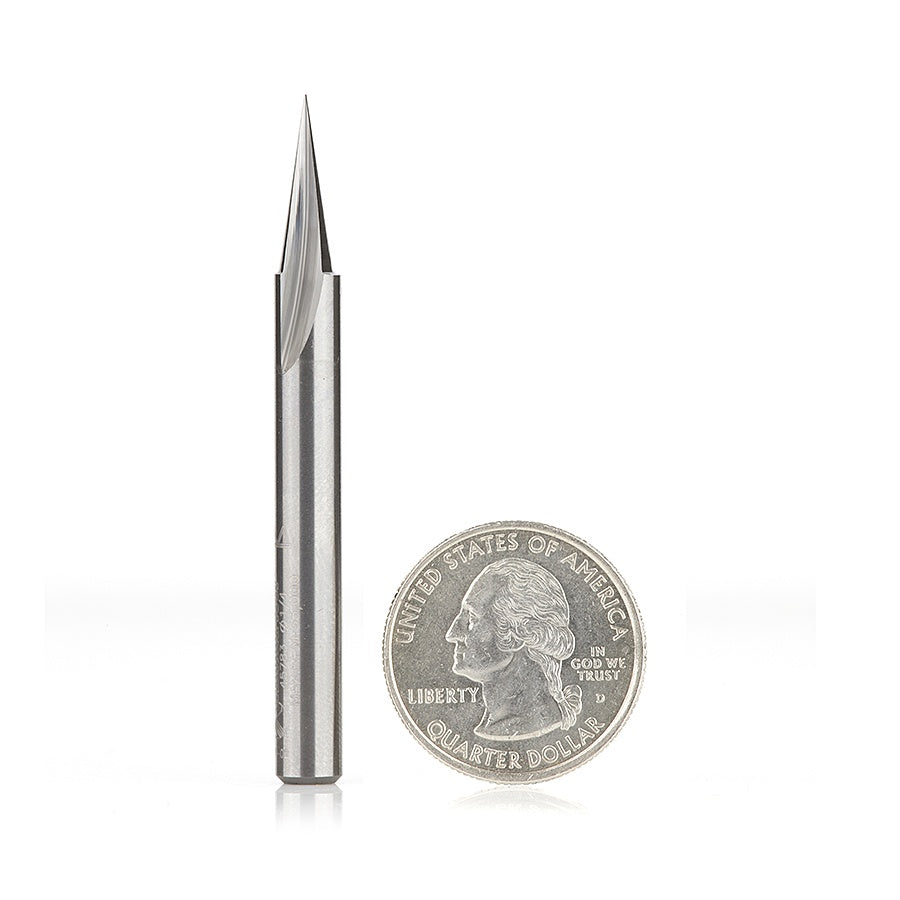

45783 - 18° Carving Liner (Solid Carbide, for Extra-Fine Carving)

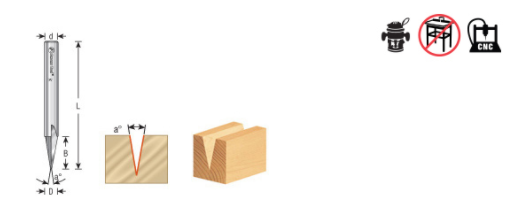

• Shank (d): 1/4"
• Diameter (D): 1/4"
• Angle (a°): 18°
• Cutting Height (B): 5/8"
• Overall Length (L): 2-1/2"
• Max RPM: 35,000
• Flutes: 1

For extra-fine carving and lettering details.

• Aluminum
• Brass
• MDF/Laminates
• Plywood
• Silver
• Wood

CNC running parameters based on 1 x Diameter depth per pass:

• RPM: 18,000
• Feed Rate: 90 IPM
• Chip Load per tooth: 0.005"
• Ramp down Rate: 90 IPM
