Blum - Inserta Drilling Template
Blum - Inserta Drilling Template

Blum - Inserta Drilling Template

$106.95
$106.95
Envío calculado al finalizar la compra.

Disponible

Description

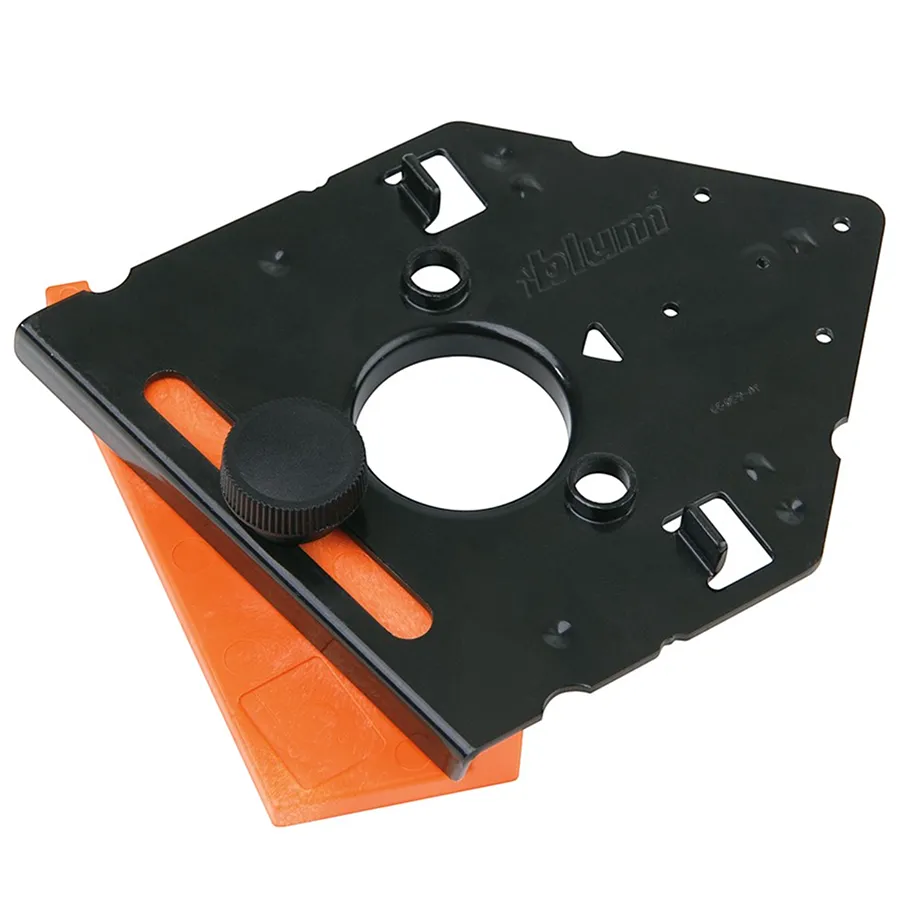

INSERTA Boring Jig for hinges and plates

65.059A

  • Drilling template for installing Blum hinges with INSERTA or dowels cups.

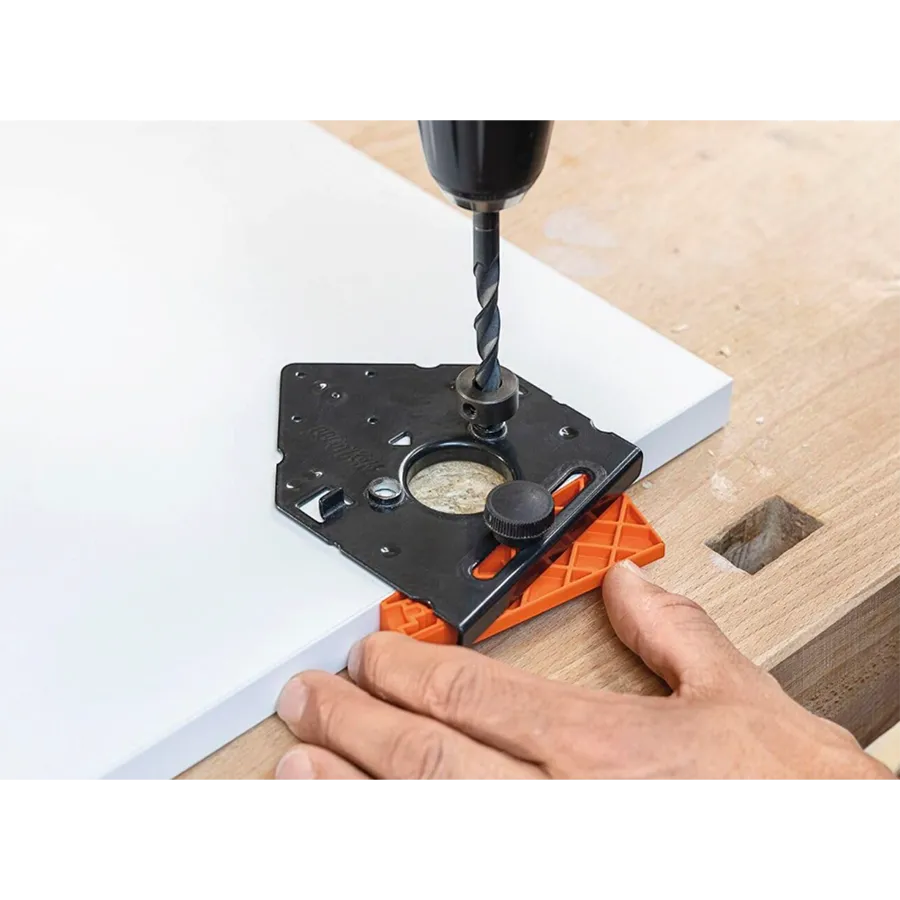

  • For boring Ø8 mm dowel holes after Ø35 mm hole is bored
  • Wedge used for the bore distance locator
  • Can accommodate all special bore distances (i.e. 3.5, 4.5, etc.)
  • Also has hole locations to pre-bore for wing and in-line mounting plates
